AS
electromagnetic sealers to make and close bags

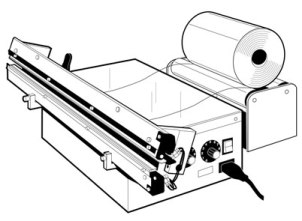

AS sealers can be used to make bags from polyethylene tubular rolls in any length, with a maximum widht of 60 or 100 cm according to model (roll holders on request).

as


The impulse seal is 3 mm wide. Sealing and cooling time are regulated by timer and indicated by a lamp.
Just pull the film for the required length and lower the pedal to start the sealing cycle. At the end of the pre-set cycle the jaws will re-open automatically.


as

While the unit is sealing you can slide the cutter along the sealing arm thus separating the bag.

When the bag has been filled with your product you can seal it by means of the same sealer, cutting off any exceeding part by means of the sliding knife.

If you need a small quantity of film click here.

as

  technical data
AS 600
AS 1000

  welding width

60 cm

100 cm

  larghezza utile taglio

55 cm

95 cm

  larghezza max bobina

55 cm

95 cm

  type of seal

  ribbon seal 3 mm wide

  materials
  polyethylene, polypropylene, PVC (max thickness 150 microns)

  dimensions

68x43x20 cm

110x37x20 cm

  weight

20 kg

33 kg

  voltage

  230 V

  consumption

  750 W/hour (only during sealing)
Cibra reserves the right to modify all models without warning.
